Inverter split system
ZAM1I2

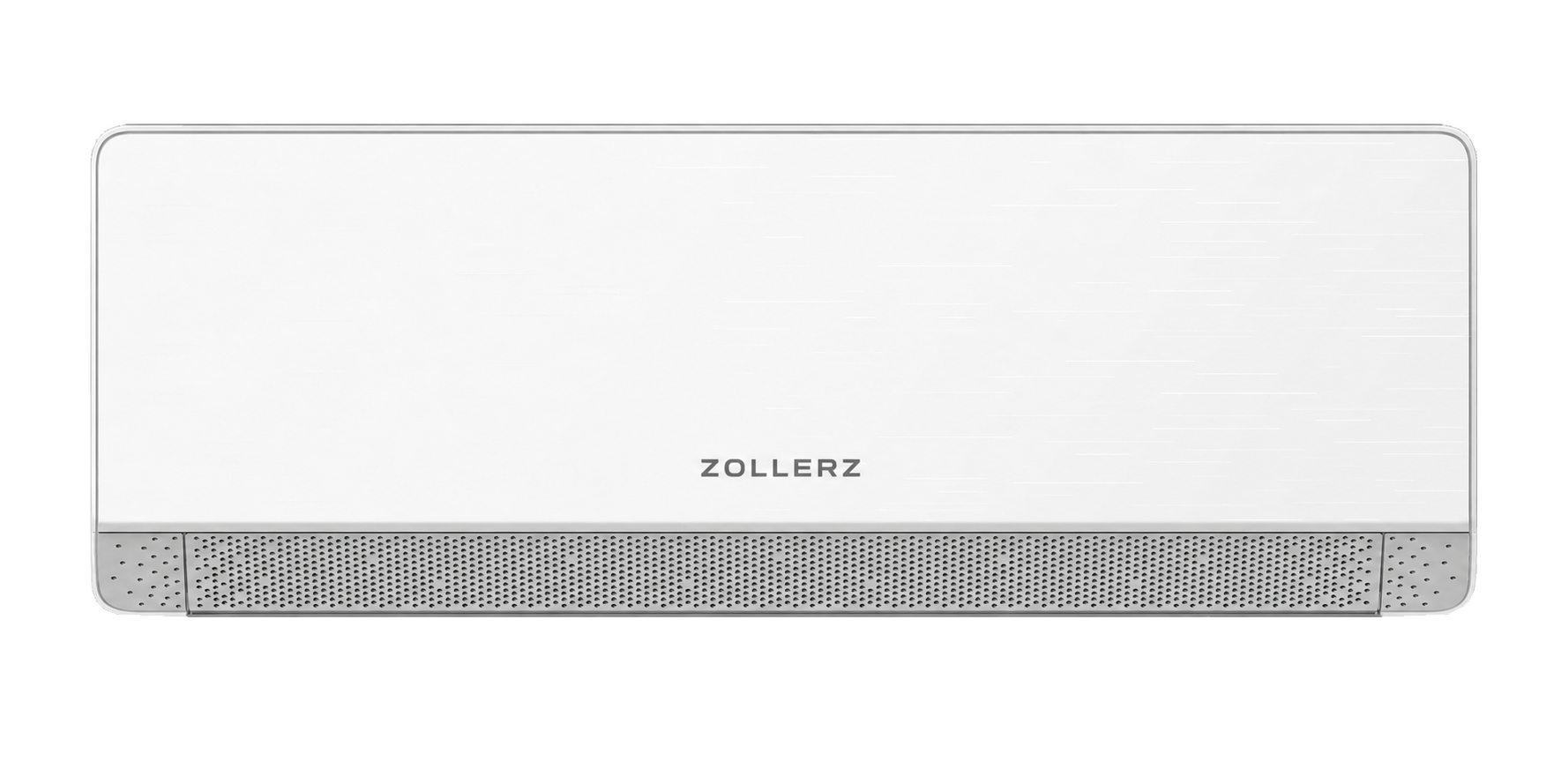

A calm, architectural indoor unit that softens the supply stream before it enters the room, then directs it vertically and horizontally where comfort is needed.
4D airflow
Set the path.
Keep the room calm.
Motorised vertical and horizontal direction control helps distribute air across the room instead of concentrating it in one narrow line.
- ↕
- Vertical direction
- ↔
- Horizontal direction
01 / Soft airflow
Break one direct stream into thousands.
A perforated lower louvre distributes the supply air through a dense field of small openings before it reaches the room.
- 2,430
- airflow apertures
- 22 dB(A)
- quietest listed indoor level
Seasonal cooling
A+++Cooling energy class across all four listed capacities- 8.7
- SEER
- -25 C
- listed lower heating range
- 53 C
- listed upper cooling range
- R32
- refrigerant
02 / Inverter control
Low-speed modulation for steadier comfort.
Inverter control can reduce compressor speed to 1 Hz and regulate room temperature within a listed ±1 C band, limiting abrupt on-and-off cycles.
650 m3/hmaximum listed airflow for the selected capacity
03 / All-season range
Specified beyond mild weather.
The listed operating envelope extends from −15 to 53 C in cooling and from −25 to 30 C in heating, with variant-specific installation limits below.
Review installation dataSelected article: ZAM1I2-35-W
Technical specifications
All values below update with the selected capacity for faster product and installation review.Installation
Project support
