Fresh air inverter split system
ZTF1I2
Temperature control and a dedicated fresh-air path, composed as one wall-mounted system.
01 / Fresh-air path
A second route for the air you breathe.

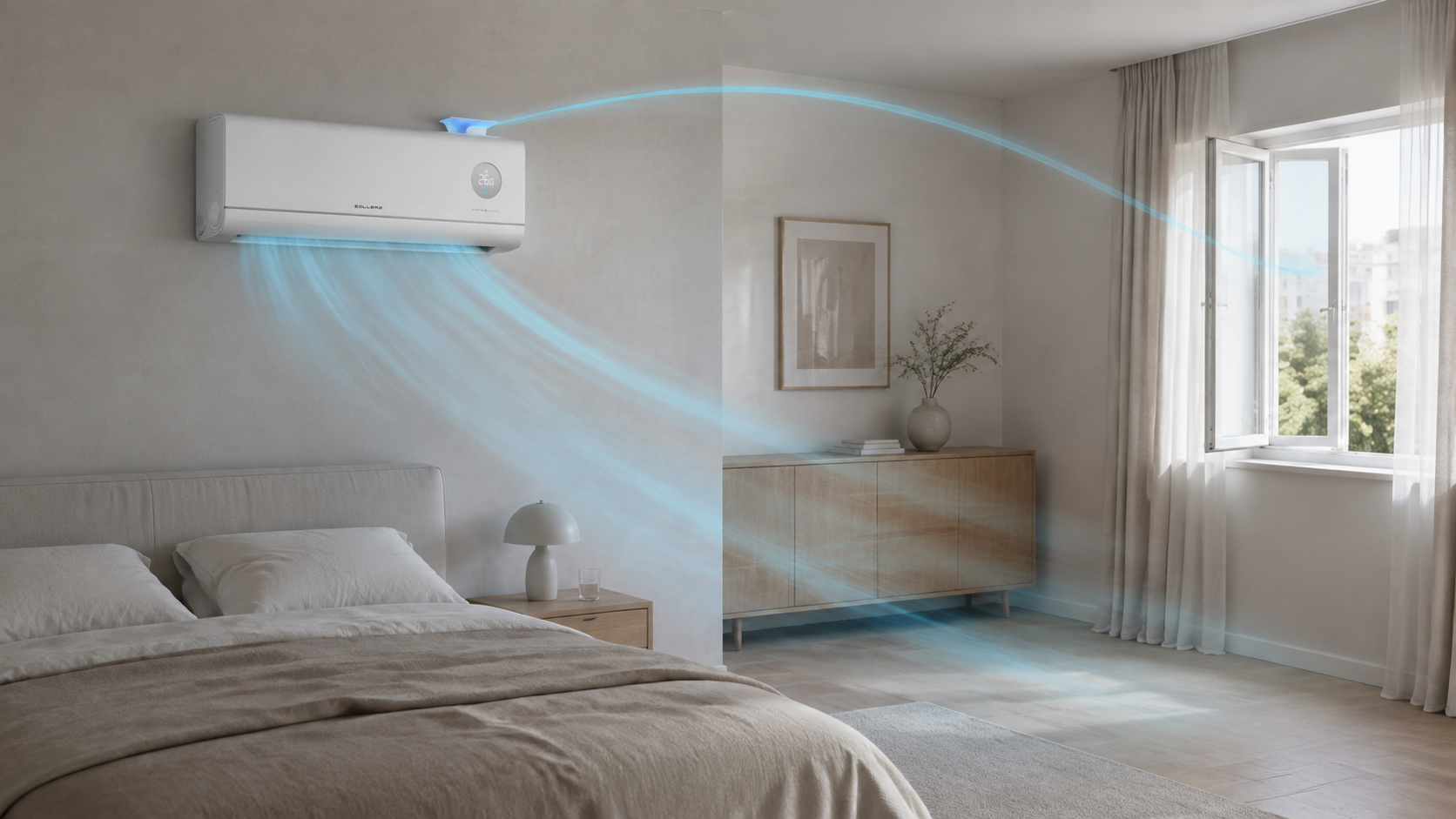

The liftable top inlet creates a dedicated path for outdoor air while the indoor unit continues to manage room temperature. A blue light detail makes the inlet visible at a glance.
- Intake
- Liftable top inlet
- Operation
- Fresh air + climate
02 / FiltrationFour layers.
Four layers.
One readable sequence.
Each stage has a defined place in the fresh-air route. The diagram keeps the layers separate instead of hiding them inside a generic filter claim.
01PreliminaryFirst-stage intake layer
02Silver-ionSecond filtration layer
03EPA efficiencyFine-particle layer
04High-densityFinal dense layer
03 / Air status
Air quality, shown on the unit.
Integrated TVOC sensing feeds the circular status display. The filter-life reminder appears when remaining life falls below 20%, making routine attention visible without adding another panel to the room.
<20%filter-life reminder threshold
04 / Gentle Breeze
1,222 micro-holes divide the outlet flow.
The louvre disperses the supply stream across a dense perforated surface before air enters the room, supporting a softer distribution pattern.
Selected article: ZTF1I2-35-W
Technical specifications
Every value below is tied to the selected capacity. The original white-silver finish is common to both articles.Installation
