Inverter split system
ZTP1I2

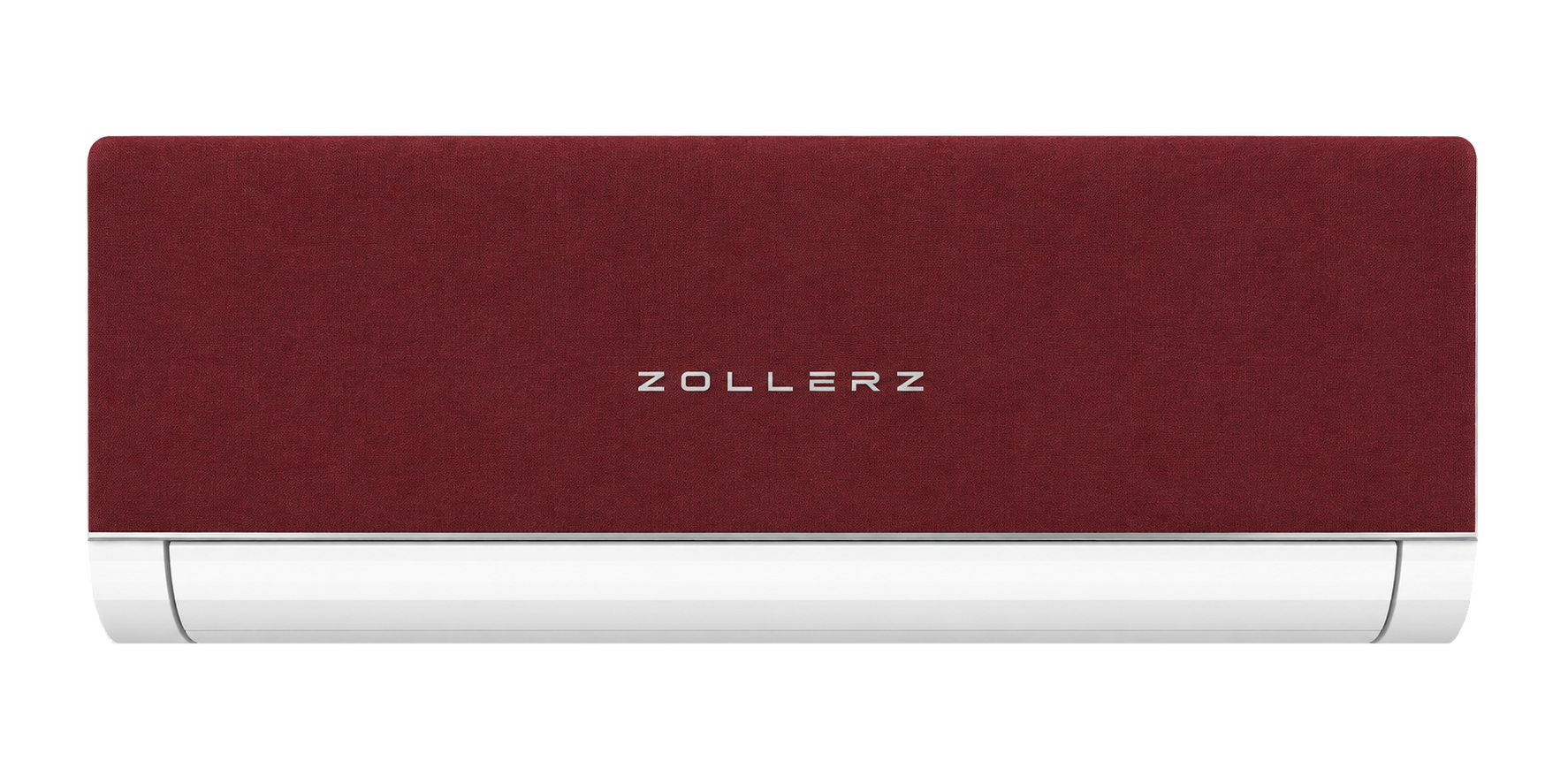

A distinctive split-panel indoor unit built around controllable airflow: diffuse it gently, send cooling across the room, or guide warm air toward floor level.
Dual-louvre control
One outlet.
Two room paths.

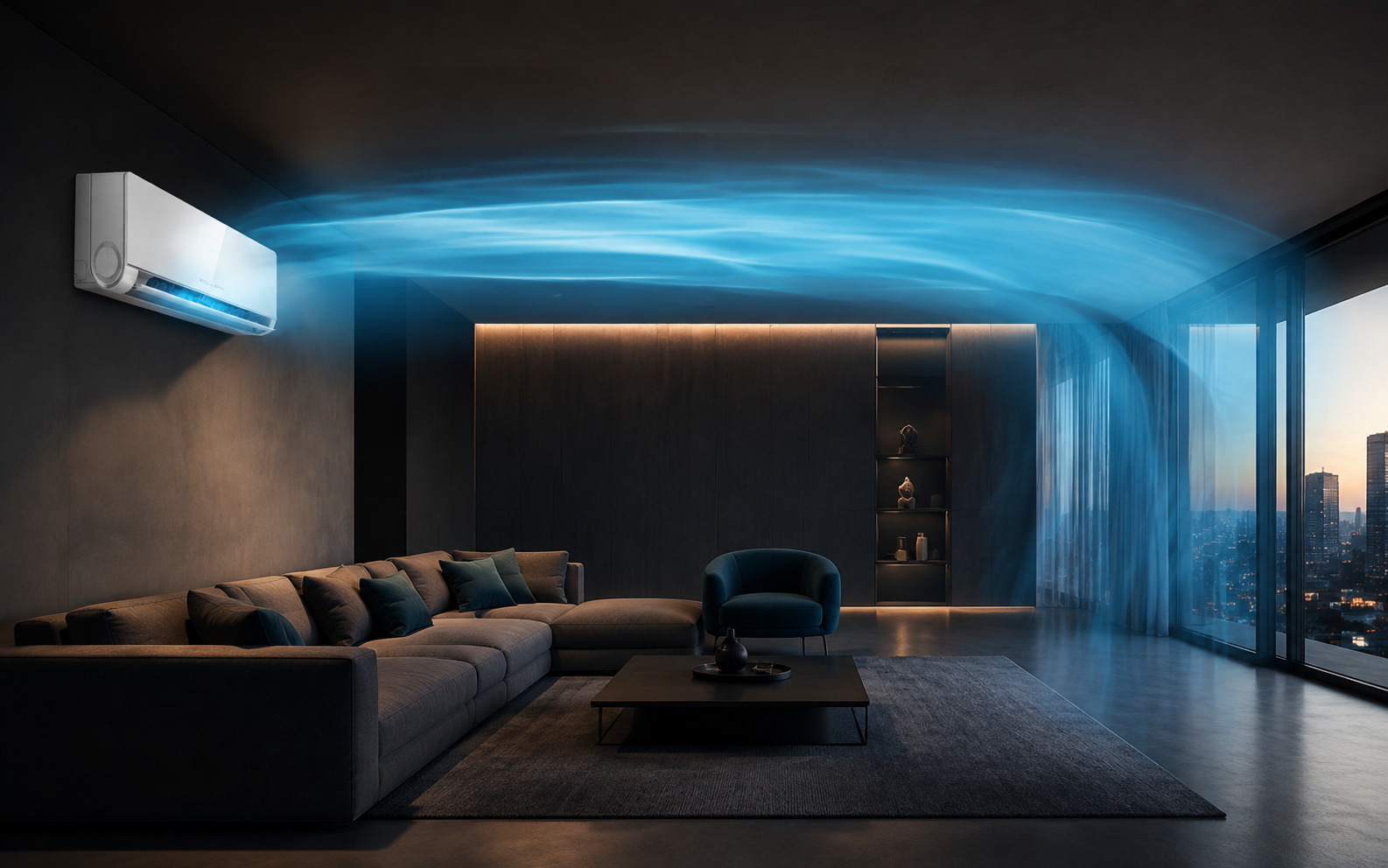

The upper and lower louvres can shape the vertical path for the job at hand. Choose a mode to see the intended room-level distribution.

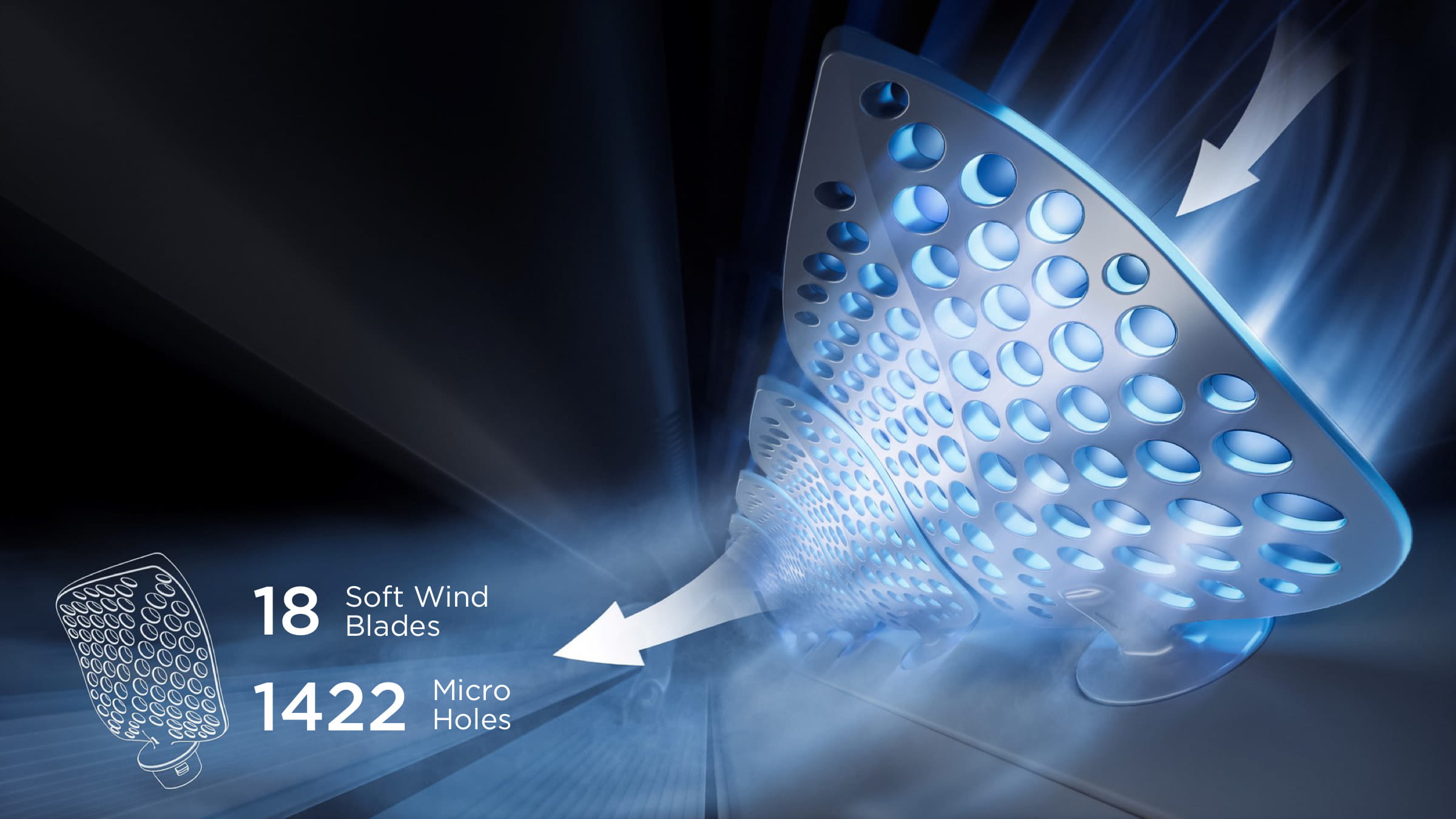

01 / Gentle Breeze
Diffuse the stream before it reaches the room.
The louvre divides concentrated supply air across a dense field of openings, creating a softer distribution pattern.
- 18
- S-shaped blades
- 1,422
- micropores
Seasonal cooling
A+++Cooling energy class across all four listed capacities- 8.5
- SEER
- -25 C
- listed lower heating range
- 53 C
- listed upper cooling range
- R32
- refrigerant
02 / Air delivery
More blade area behind the outlet.

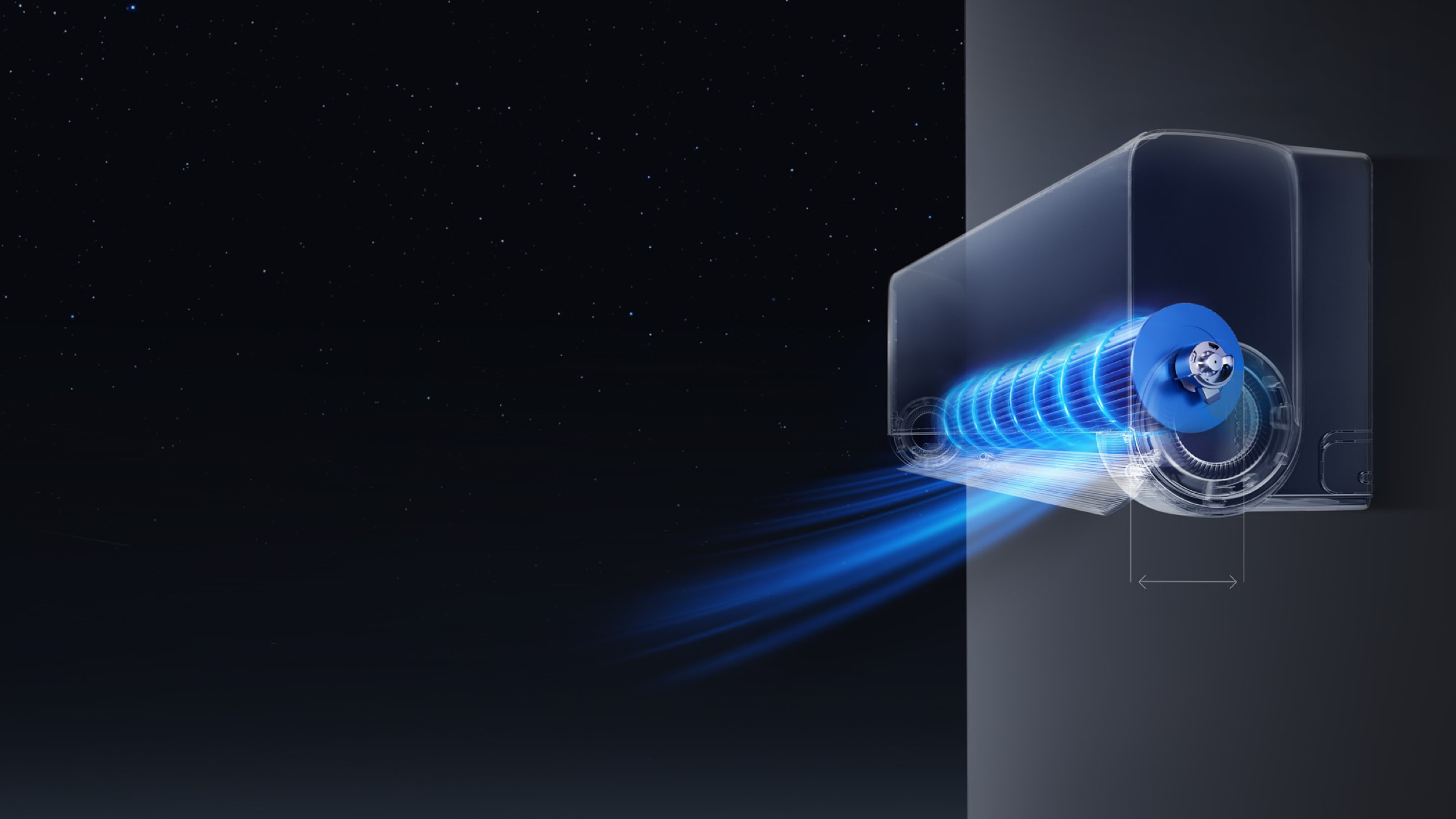

A 108 mm cross-flow fan spans the indoor unit to move the selected capacity through a broad outlet. Maximum airflow changes with the selected model.
680 m3/hmaximum listed airflow for the selected capacity

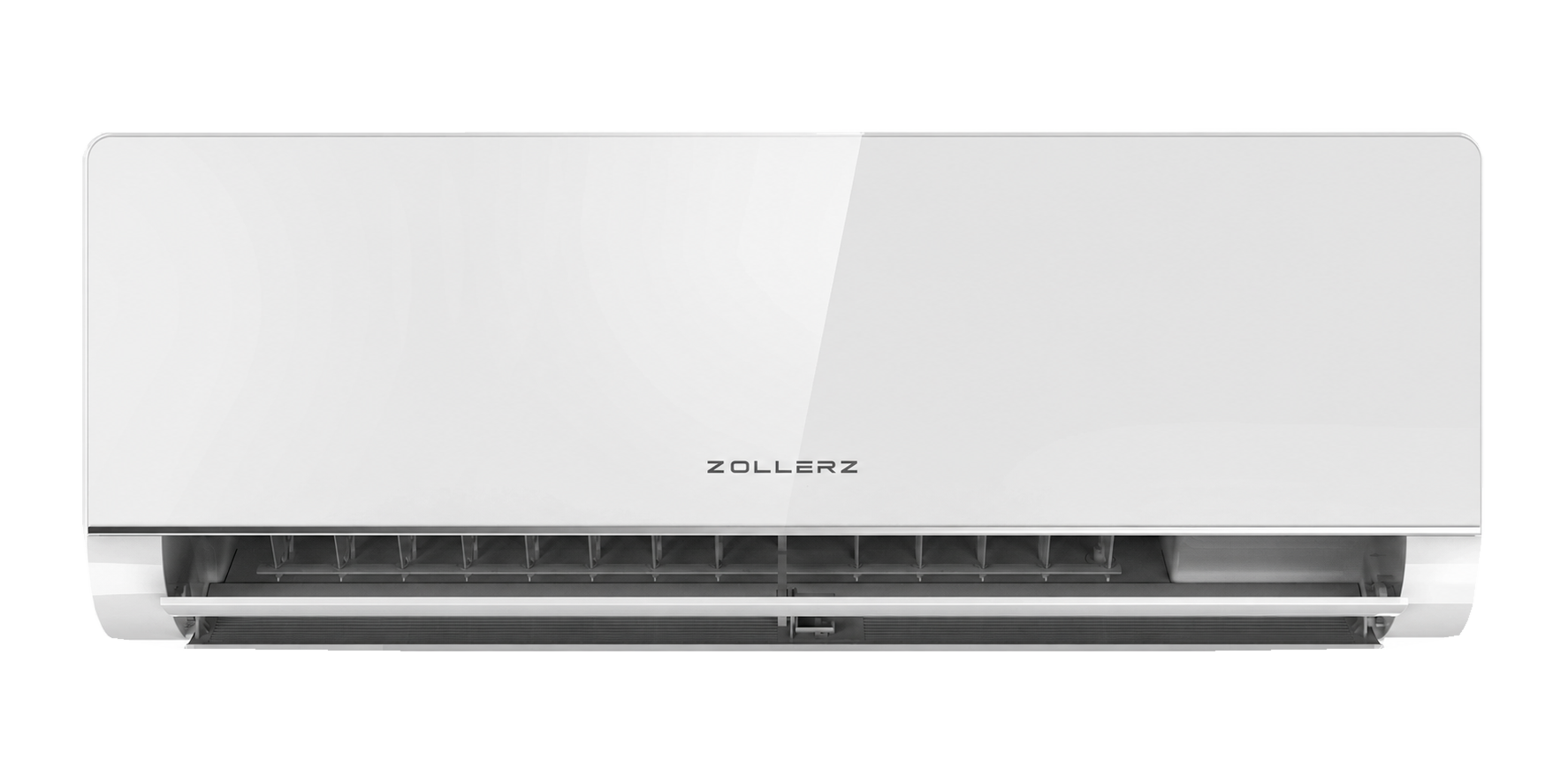

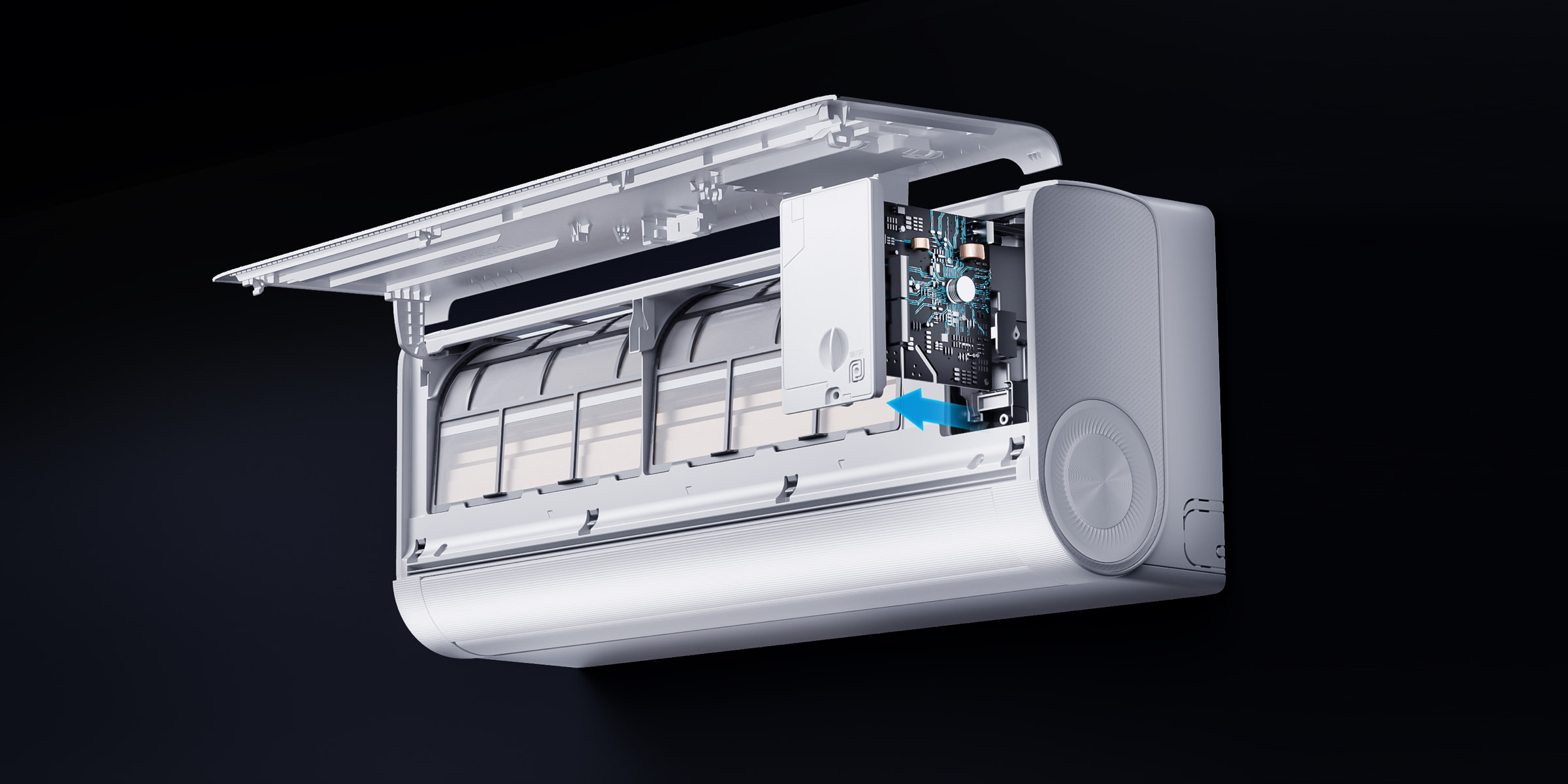

03 / Service access
Designed to open cleanly.
The front panel and electronics area are arranged for direct access during routine service. A structured installation layout supports accurate placement and maintenance planning.
Review installation dataSelected article: ZTP1I2-35-W
Technical specifications

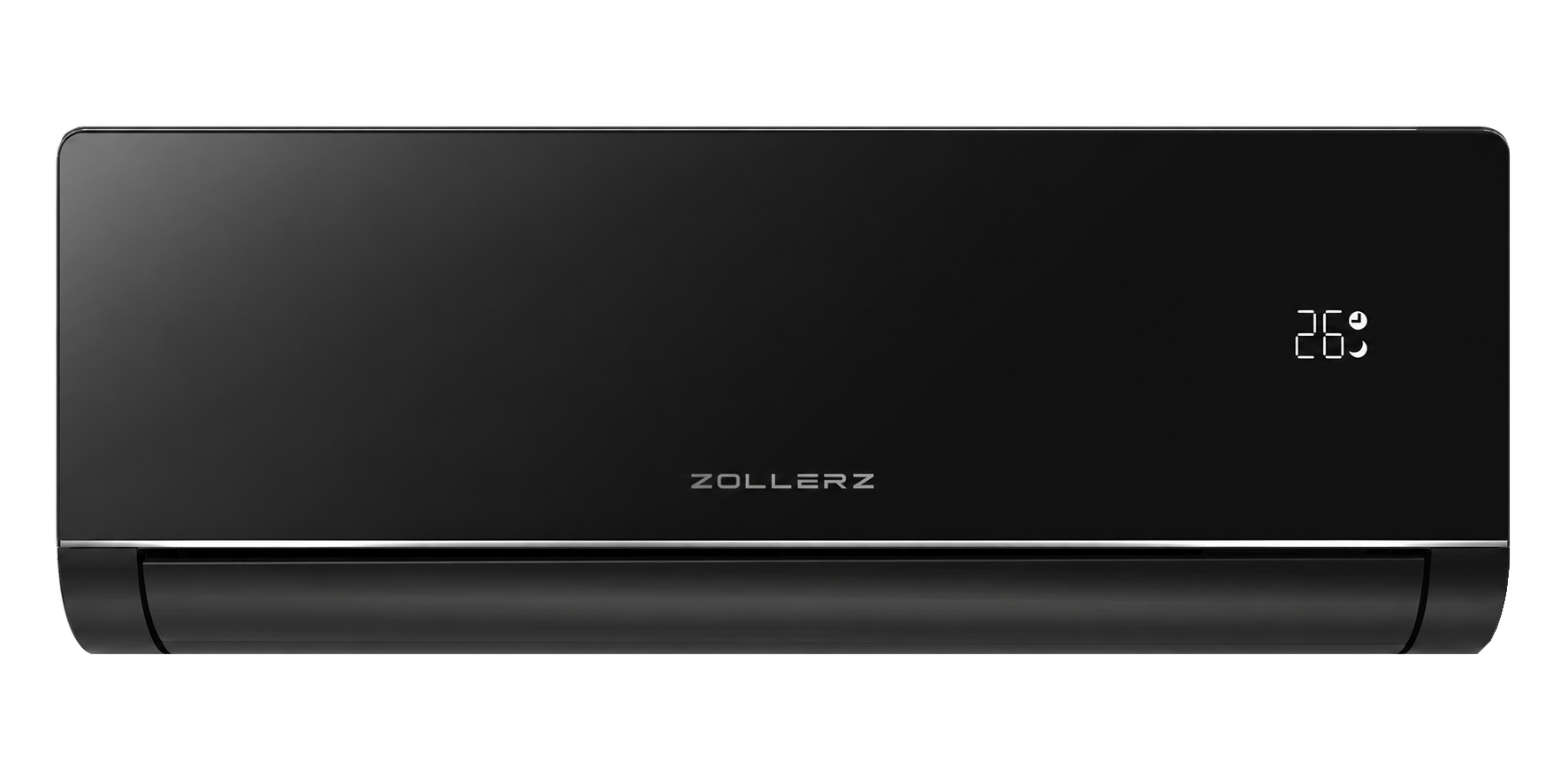

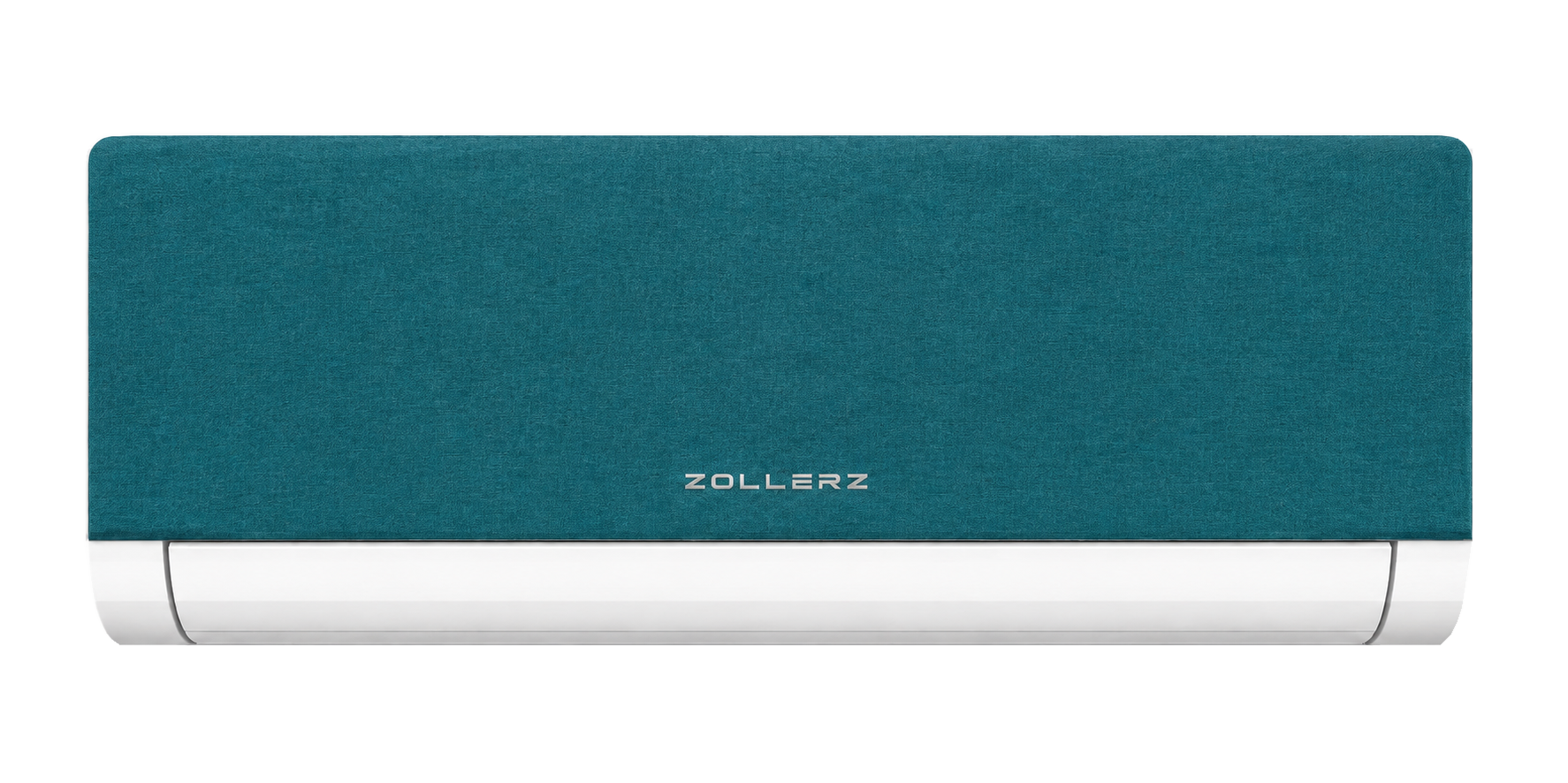

All values below update with the selected capacity. The article also reflects the selected finish.Installation
